Product Description

USA market 10inch electrichydraulic drum brake axle 1500-2000KG.png


USA market 10inch electric/hydraulic drum brake axle  1500-2000KG

 (5* 4.5" wheel bolts pattern)

NO.

Description

QTY

option 1

option 2

option 3

1

axle shaft

1

60*5mm round tube

50mm Rd I Sq solid


2

brake plate

2

AT01200107



3

brake disc

2

AZ004L /R

AZ013L/R

AZ026L/R

4

bolt, washer & nut

8

AC00100501/2/3



5

oil seal

2

AC00300201



6

inner bearing

2

L 68149/11



7

hub drum

2

AC00300300



8

wheel nut

10

1/2-10U JNF



9

outer bearing

2

L44649/10



10

flat washer

2

AC00201001



11

castlenut

2

AC00200701



12

split pin

2

AC00200404



13

dust cap

2

AC00300601

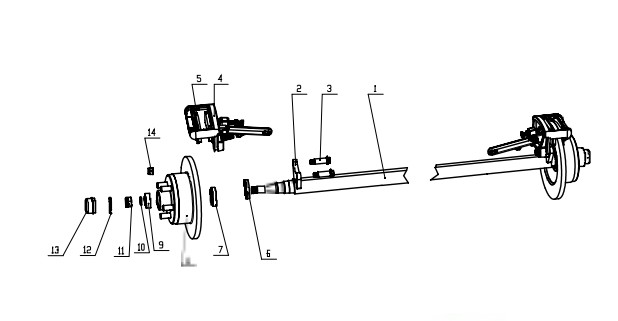

10inch mechanical disc braked axle 1200-2000KG.png

10inch mechanical disc braked axle 1200-2000KG

NO.

Description

QTY

option 1

option 2

option 3

1

axle shaft

1

40mm Rd / Sq solid

45mm Rd 1 Sq solid

50mm Rd / Sq solid

2

mounting plate

2

AC00900601



3

bolt

4

AC00900303



4

mechanical caliper

4

AC00900300



5

brake pad

4

AC00900301



6

oil seal

2

AC00500201

AC00900500


7

inner bearing

2

L68149/10

LM67048/10


8

hub disc

2

AC00900201



9

outer bearing

2

LM12749/10

L68149/10


10

flat washer

2

AC00500402



11

castlenut

2

AC00500403



12

split pin

2

AC00500404



13

dust cap

2

AC00500405



14

wheel nuts

10

1/2"-10L JNF

7/16"-20UNF




AU market 10inch electric hydraulic drum brake axle.png

AU market 10inch electric/hydraulic drum brake axle

 ( 5* 4.5", 6*5.5" wheel bolts pattern)

NO.

Description

QTY

option 1

option 2

option 3

1

axle shaft

1

45mm Rd / Sq solid

50mm Rd / Sq solid

60*5mm 圆管

2

mounting plate

2

AT01200107



3

brake plate

2

AZ013L /R

AZ004L /R

AZ026L /R

4

bolt

8

AC00100501



5

washer & nut

8

AC00100502/3



6

oil seal

2

AC00500201



7

inner bearing

2

L 681 49/10



8

hub drum

2

AC00500300



9

wheel nut

8.10.12

1/2"-10UNF

7/1 6"-20L JN F


10

outer bearing

2

LM12749/10

L 68149/10


11

flat washer

2

AC00500402



12

castlenut

2

AC00500403



13

split pin

2

AC00500404



14

dust cap

2

AC00500405



We go to various countries to participate in exhibitions every year, because it can better serve our customers. Our high quality semitrailer legs, axles, suspension make us have many long-term partners


We are a professional semi axle manufacturer, if you want to know more please contact us!


Factory Tour

Our company specializes in the production of trailer accessories. All the company's products adopt international quality standards, have advanced technology and complete equipment, and have passed TS16949 quality system certification. A high-quality workforce and complete testing equipment ensure the quality of our products.

FAQ

1. Are you trading company or manufacturer?

 We are professional factory with 50 years manufacturing history.

2. How can we guarantee quality?

 Always a pre-production sample before mass production; Always final Inspection before shipment.

3. Where are you ?

Our factory is in Liangshan, which is very close to Jinan City. Factory inspection is very convenient.

4. Can you provide the IS09001 certificate or some others related:

Yes, We have rich experience for exporting to different countries such as Europe, South America, Middle east, Russia and Others. This helps you importing successfully.

5. What is your terms of payment?

30% as deposit,and 70%the balance before delivery.

Don't see your trailer's configuration? Contact us for all available options! We also have suspension parts, axles, tires, and more.
